Storage

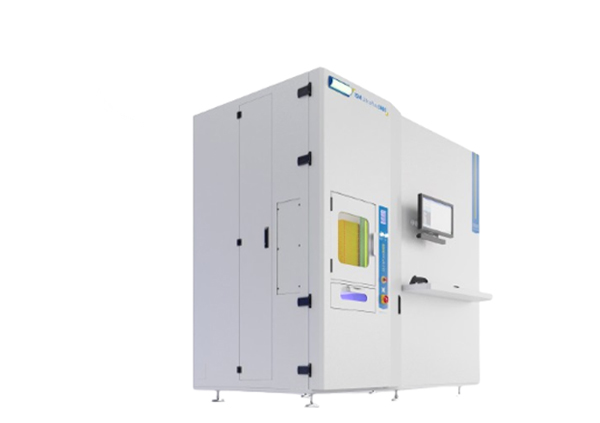

Intelligent Storage Management System(ISM3600)
Case height can be adjusted from 8mm to 88mm.
Maximum capacity of 3,600 reels can be stored in double reel cases.
Pulling to 54 reels at a time
Promoting the efficiency of inventory management through linked systems
Promoting the efficiency of inventory management through linked systems

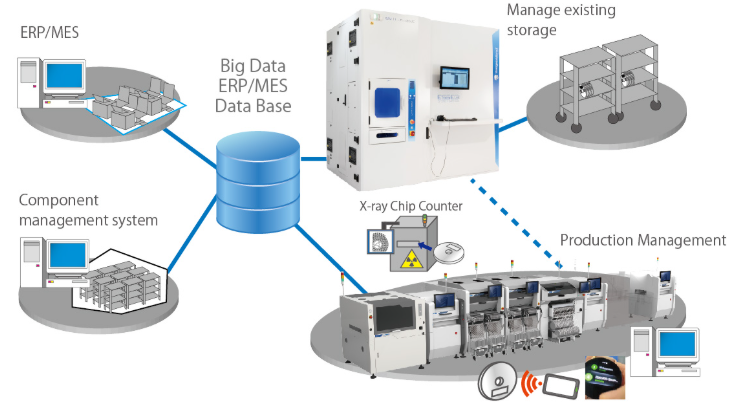

The automated warehouse can be linked with the ERP (Enterprise Resources Planning) and MES (Manufacturing Execution System) functions via IoT to enable timely entry and dispatch of parts and small articles to and from the warehouse and their real-time inventory management in cooperation with the production sites.
It can also be linked with AMRs (Autonomous Mobile Robot) and picking robots to further automate transfer operations.
| Model | ISM 3600 | ISM 3600 F.A. | ISM 1800 | ISM 1100 | ISM 500 | ISM 3900 |
|---|---|---|---|---|---|---|
| Dimensions WxDxH (mm) | 2533x1673x2453 | 2532x1673x2453 | 1710x1622x2217 | 1735x936x2200 | 1755x799x2185 | 2534x1379x2453 |
| Power supply | Single phase 200-230V, 50/60Hz | |||||
| Power consumption (incl. dehumidifier) | 0.3kW(1.6kW) | 0.3kW(0.82kW) | 0.1kW(0.7kW) | 0.3kW(1.6kW) | ||
