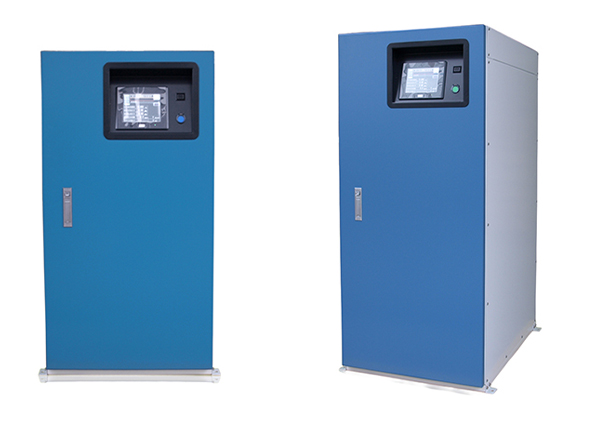

Nitrogen Gas Generator
For Selective Soldering Machine
Compact and Energy Saving Nitrogen Gas Generator with Touchscreen Control
Realizes improved performance compared to the conventional machines even with an air which is made of low-pressure materials and has a high energy-saving effect
(Manufacturer: Iwatani Corporation)
| Model |
TKH4-27HP |
TKH4-45HP |
TKH-63HP |
| Purity (%) |
99.99 |
| N2 Production (Nm3/h) |
2.7 |
4.5 |
6.3 |
| Discharge Pressure (MPa) |
0.55 |
| Dimensions WxDxH (mm) |
550 x 800 x 950 |
550 x 800 x 1250 |
550 x 800 x 1700 |
| Body Weight (kg) |
175 |
200 |
230 |
| Noise level (dB(A)) |
60 or less |

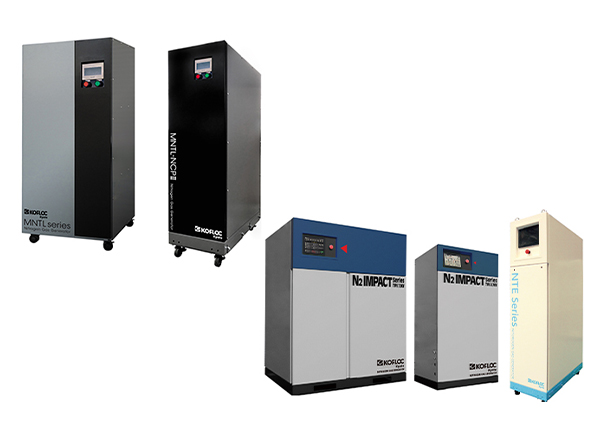

Nitrogen Gas Generator
Realizes significantly improved performance for N2 generation and discharge pressure
(Manufacturer: KOFLOC Corp.)
| Model |
M4NTL-1.8-5(6)-A |
M4NTL-1.8-NCPⅡ-A |
4NCP-3.7Ⅱ |
4NTE-3.7 |
| Compressor |
Built-in |
Separately placed |
Built-in |
Separately placed |
| Purity (%) |
99.99 |
| N2 Production (Nm3/h) |
2.04 |
4.8 |
4.5 |
| Discharge Pressure (MPa) |
0.5 |
0.53 |
0.55 |
0.55 |
| Dimensions WxDxH (mm) |
600x680x1210 |
390x710x1210 |
780x840x1590 |
390x840x1590 |
| Body Weight (kg) |
275 |
200 |
440 |
240 |
| Noise level (dB(A)) |
58.8 |
62 |
58 |

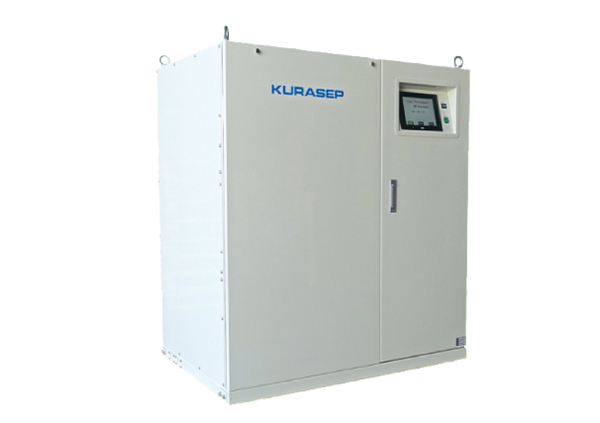

For Reflow Oven
Compact Nitrogen Gas Generator
| Model |
RA-11 |
| Purity (%) |
99.99 |
| N2 Production (Nm3/h) |
20 |
| Discharge Pressure (MPa) |
0.5 |
| Dimensions WxDxH (mm) |
1200x870x1380 |
| Body Weight (kg) |
680 |
Energy Saving Nitrogen Gas Generator
| Model |
NE4-11KII |
| Purity (%) |
99.99 |
| N2 Production (Nm3/h) |
20 |
| Discharge Pressure (MPa) |
0.5 |
| Dimensions WxDxH (mm) |
693ｘ1160ｘ1700 |
| Body Weight (kg) |
650 |
