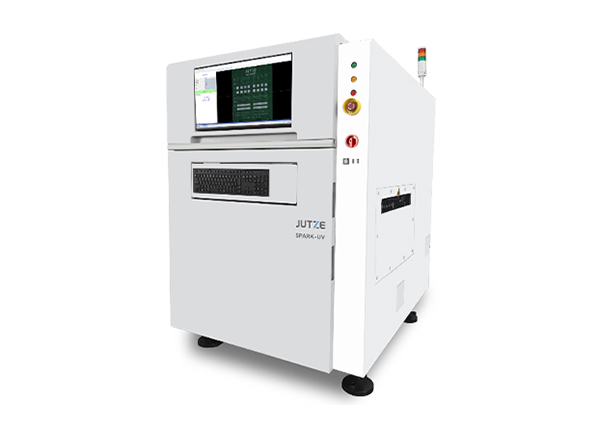

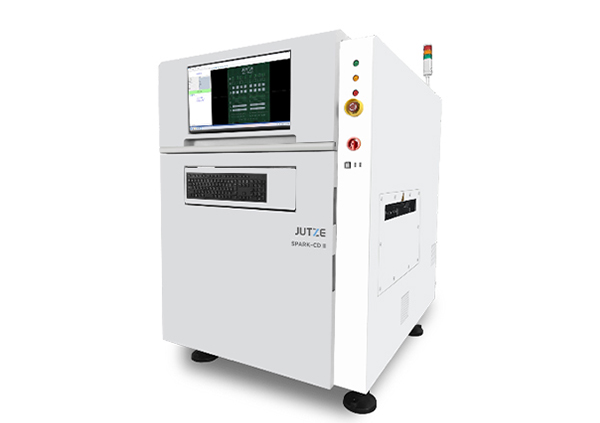

This laser marker enables simultaneous printing on both sides of a PCB.
The laser unit is equipped with a Z-axis, allowing it to accommodate different thicknesses of PCBs and components.
The dot size is 0.11mm for CO2 lasers and 0.04mm for UV lasers, allowing for high-resolution marking.
(Manufacturer: JUTZE Intelligence Technology Co., Ltd.)
| Laser type |
CO2 (dot size 0.11mm), 5W, forced air cooling |
| Drive method |
XY-axis drive, Rail width auto adjust mechanism |
| Outer dimensions |
W1050 X D1300 X H1960 (mm) |
| Applicable PCB size |
50 x 70 mm ~ 470 x 350 mm |
| PCB clearance |
Top side 30mm / bottom side 30mm |
| Weight |
900Kg |
